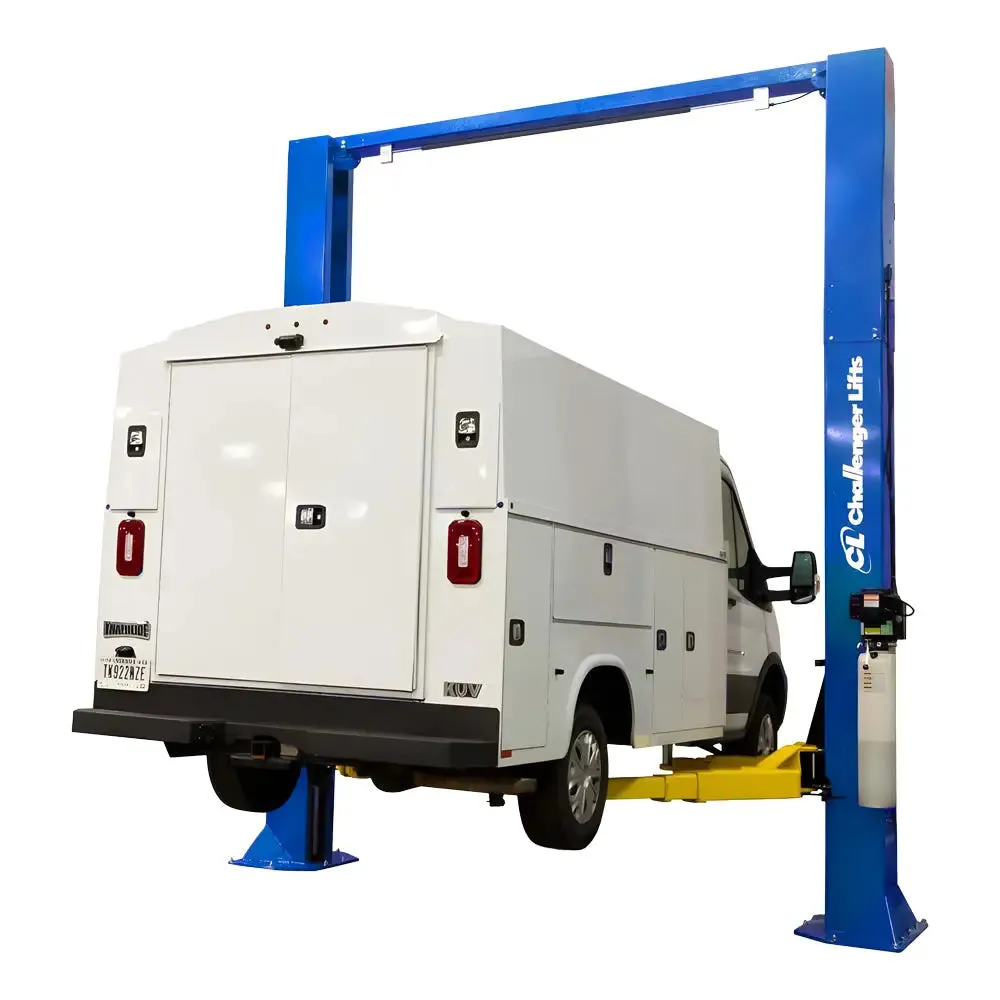

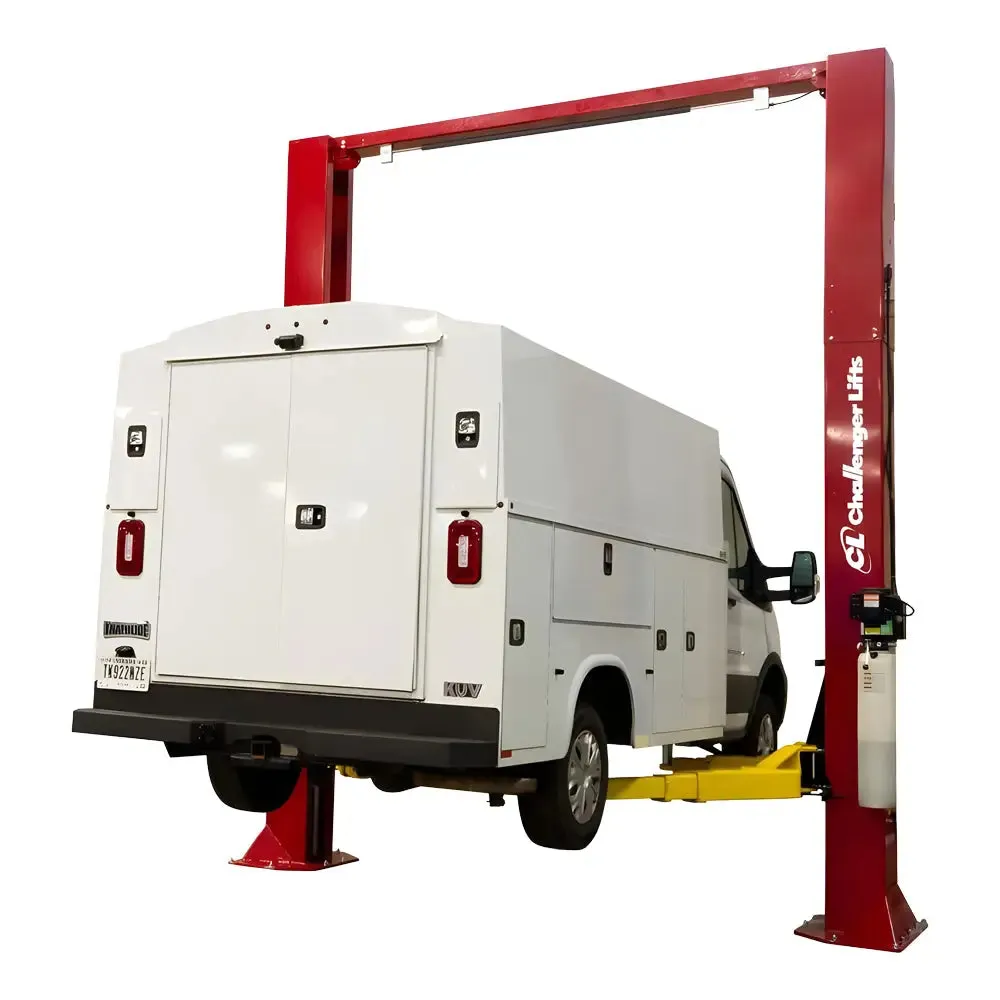

The Challenger CL20 is a heavy-duty two-post lift that can lift up to 20,000 lbs. It is designed to meet ALI/ANSI safety standards and is built to withstand the toughest of fleet maintenance. The CL20 features a single-point air actuated lock release, oversized 5” diameter steel pulley, and heavy-duty 3/8” cable. It also has a 60” lifting carriage design and adjustable width and symmetrical design for easy access to the vehicle’s interior. Dual integrated rubber door guards prevent door damage.
The CL20 is the perfect choice for any fleet that needs a reliable and durable two-post lift. It is available in a standard or extended model to meet the needs of any fleet.
Features:
- Capacity: 20,000 lbs.
- Meets ALI/ANSI safety standards
- Built to withstand the toughest of fleet maintenance
- Single-point air-actuated lock release
- Oversized 5” diameter steel pulley
- Heavy-duty 3/8” cable
- 60” lifting carriage design
- Adjustable width and symmetrical design
- Dual integrated rubber door guards
Specs:
Lifting Capacity: 20,000 lbs.Lift Configuration: Symmetric
Arm Configuration: 2-Stage Front/Rear
Maximum Load Per Arm: 5,000 lbs.
Rise Height (Maximum with Stack Adapters): Min. 76.6in Max. 84.6in
Overall Height Options: 162in, 168in, 174in
Overall Width Options: 166.75in, 160.75in, 154.75in
Drive-Thru Clearance: 104.25in, 110.25in, 116.25in
Floor to Overhead Switch: 155in, 161in, 167in
Arm Reach: Min. 38.5in Max. 62in
Screw Pad Height: Min. 6.2in Max. 7.6in
Between Columns: 120in, 126in, 132in
Motor/Voltage: 3HP, 1Ph, 60Hz, 208/230v
Air Supply Required: 90-120 psi
Rise Time: 62s
Min. Ceiling Height Required: 13ft8in, 14ft2in, 14ft8in
Ref No
CHL-18000 (Obsolete Model)
CL16 (16K Capacity Model)
CL20-2 (Extended Height Model)
Application:
Oil changesTire rotations
Brake repairs
Engine repairs
Transmission repairs
Bodywork
Painting
Other maintenance tasks
Business
Fleet Maintenance
Automotive Repair
Includes:
B12162S-12 Screw pads4in & 8in Stack adapters
Organizer racks with hardware
Optional:
10317 - Reducer bushing kit
10333 - Sprinter adapter kit
- 2 x pin adapters
- 2 x cradle adapters (for 15000-3S series only)
B10264A - Air/electric workstation with filter/lubricator/regulator
B99700 - Tire Tool Manager Work Station with filter/lubricator/regulator
